Getting Started with FRECKLL

  • If you want to use the command line interface, the Quickstart can be found here

  • The Google Colab version of this page can be found here

This guide is there to quickly get started on the using the freckll library. Here you will learn the basics:

  • Loading in atmospheric data
  • Loading in our network.
  • Solving the atmosphere
  • Plotting results
  • Animating results
  • Running from equilibrium
  • Storing results
  • Running with photochemistry.

Loading in Atmospheric Data

First thing we need is profiles to solve. FRECKLL makes use of astropy to units to represent data. This makes the library agnostic to units. Creating a custom profile is as simple as:

from astropy import units as u
import numpy as np

temperature = np.linspace(2000,10000, 100) << u.K
pressure = np.logspace(2,-5) << u.bar

You can use your own methods to load in the data as long as it is in the form of a Quantity with correct units. FRECKLL includes some helpful methods to load in data under the freckll.io.loader module. For example, we will load in the TP profile using the tp_profile_loader function.

Our csv file looks like this:

# Pressure(mbar), Temperature (K)
0.10002E+06    1846.3
86374.        1841.7
74509.        1837.4
63753.        1836.2
54482.        1834.9
46559.        1833.4
39787.        1831.9
34001.        1830.4
29020.        1828.9
24720.        1828.1
21047.        1827.5
17919.        1826.9
  • Column 0 is Pressure in mbar
  • Column 1 is temperature in K

We can load it in using the following tp_profile_loader function:

from freckll.io.loader import tp_profile_loader
pressure, temperature = tp_profile_loader(
  filename="tpprofile.csv",
  temperature_column=1, temperature_unit=u.K,
  pressure_column=0, pressure_unit=u.mbar, comments="#")

print(pressure.shape)

(130,)

Additionally it would be nice to load in a \(K_{zz}\) profile as well. We can use a loader to do this as well.

from freckll.io.loader import kzz_profile_loader

_pressure, kzz = kzz_profile_loader(
    filename="kzz.csv", kzz_column=1,pressure_column=0, kzz_unit=u.cm**2/u.s,
    pressure_unit=u.mbar, comments="#"
)
print(kzz.shape)

(28369,)

Sometimes different profiles lie on different pressure grids, in this case \(K_{zz}\) is in a much finer grid. We can get around this by interpolating the points to the TP profile grid. (Or vice-versa if you desire):

from freckll.utils import interpolate_pressure

kzz = interpolate_pressure(
    _pressure, kzz, pressure
)

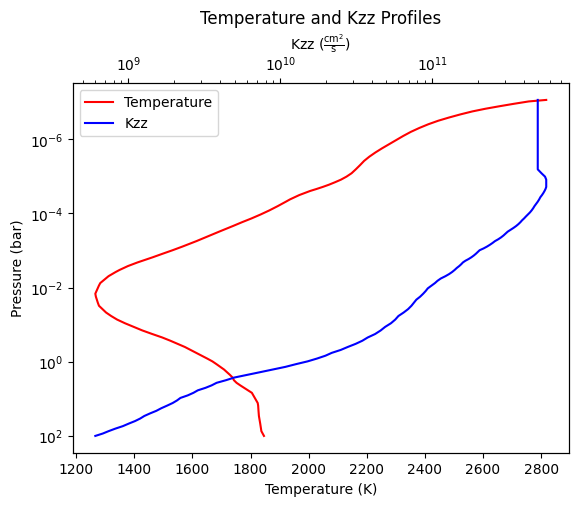

We can plot both profiles using the freckll.plot module.

from freckll.plot import plot_tp_and_kzz
import matplotlib.pyplot as plt

fig,ax = plt.subplots()

plot_tp_and_kzz(pressure, temperature, kzz, ax)
plt.show()

png

Loading in the Network

The next step is to load in the network. FRECKLL includes two Venot 2020 networks built in. The first is a full chemical network that includes photolysis and the second is a reduced network that does not include photolysis.

You can also load in your own network but this will be covered in a different tutorial.

The default_network_loader allows for two arguments:

  • venot-methanol-2020-reduced - This is the reduced network that does not include photolysis.
  • venot-methanol-2020 - This is the full network that includes photolysis.

We can use the loader to load in the reduced network:

from freckll.io.loader import default_network_loader

network = default_network_loader("venot-methanol-2020-reduced")

We can inspect the species in the network:

network.species

[C2H3O2 (CH3OCO),
 HO2 (OOH),
 C2H3O (CH2CHO),
 C2H3O (CH3CO),
 CNO (NCO),
 CH3O (CH3O),
 O2 (O2),
 CHO2 (CO2H),
 CHNO (HOCN),
 C2H5 (C2H5),
 CH3O (CH2OH),
 C2H6 (C2H6),
 C2H3 (C2H3),
 C2H2O (CH2CO),
 HN2 (NNH),
 CH2N (H2CN),
 CH4O (CH3OH),
 CN (CN),
 CH2 (1CH2),
 CHNO (HNCO),
 O (O3P),
 C2H4 (C2H4),
 CH2 (3CH2),
 CHO (HCO),
 C2H2 (C2H2),
 CH2O (H2CO),
 H2N (NH2),
 CO2 (CO2),
 HO (OH),
 CH3 (CH3),
 CHN (HCN),
 H3N (NH3),
 CH4 (CH4),
 N2 (N2),
 CO (CO),
 H2O (H2O),
 H (H),
 He (He),
 H2 (H2),
 H2N2 (N2H2),
 H3N2 (N2H3),
 CH2N (HCNH),
 CH2O2 (HOCHO),
 CH3O2 (HOCH2O),
 H2O (H2Oc[SpeciesState.LIQUID]),
 CH4 (CH4c[SpeciesState.LIQUID]),
 H3N (NH3c[SpeciesState.LIQUID])]

The SpeciesFormula is a class that contains a lot of information about a particular . It includes the following attributes:

  • composition - Number of atoms
  • mass - Mass of the species in amu
  • state - State of the species (gas, solid, liquid)
species = network.species[0]
print(f"Species name: {species}")
print(species.composition())
print(f"Mass {species.mass}")
print(f"Charge {species.charge}")
print(f"State: {species.state}")
print(f"Diffusion Volume: {species.diffusion_volume}")

Species name: CH3OCO
Element  Count  Relative mass  Fraction %
C            2      24.021480     40.6840
H            3       3.023823      5.1213
O            2      31.998810     54.1948
Mass 59.044113
Charge 0
State: SpeciesState.GAS
Diffusion Volume: 50.95

Running reactions

We can solve for reactions given a set of conditions, we will use our tp-profile and a random mixing ratio to do this:

vmr = np.random.rand(len(network.species), len(pressure))
vmr = vmr / np.sum(vmr, axis=0)

reactions = network.compute_reactions(vmr, temperature, pressure)
reactions

[CH2CHO -> CH3CO (1.36e+08) (['decomposition']),
 CH3CO -> CH2CHO (4.84e+07) (['decomposition', 'inverted']),
 CH2CHO -> H + CH2CO (2.68e+09) (['decomposition']),
 H + CH2CO -> CH2CHO (1.84e-11) (['decomposition', 'inverted']),
 NNH -> N2 + H (3.00e+08) (['decomposition']),
 ...]

Here each reaction is described by its reactants, products, reaction_rate and dens_krate. Where dens_krate is the reaction rate multiplied by the number density of the reactant species.

print(reactions[0])
print("Reaction rate:",reactions[0].reaction_rate[:10], "1/s")
print("Reaction rate:", reactions[0].dens_krate[:10], "1/cm3/s")

CH2CHO -> CH3CO (1.36e+08) (['decomposition'])
Reaction rate: [27647229.87948201 26777410.68236617 25985321.23606332 25767838.0996988
 25533968.19290701 25266348.68916494 25001102.69660493 24738213.35402364
 24477663.88574786 24339655.15159737] 1/s
Reaction rate: [3.81634324e+26 2.86330634e+26 2.73774059e+25 3.37740125e+25
 7.01415174e+25 8.90572305e+25 1.81022065e+25 2.07255692e+25
 5.89947951e+24 9.60588730e+25] 1/cm3/s

If we want to look for specific production/loss reactions for a specific species, we can add the with_production_loss argument.

reactions, (production, loss) = network.compute_reactions(vmr, temperature, pressure, with_production_loss=True)

print(production["CH4"])

[CH3 + H -> CH4 (2.63e-13) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']), H + CH3 -> CH4 (1.38e-11) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']), HOCHO + CH3 -> CH4 + CO + OH (4.91e-12) (['corps', 'reaction', 'many body']), CH3 + H2 -> CH4 + H (7.77e-13) (['corps', 'reaction', 'many body', 'inverted']), CH3 + CH3 -> CH4 + 1CH2 (1.51e-13) (['corps', 'reaction', 'many body', 'inverted']), C2H3 + CH3 -> CH4 + C2H2 (6.48e-13) (['corps', 'reaction', 'many body']), C2H4 + CH3 -> CH4 + C2H3 (1.40e-14) (['corps', 'reaction', 'many body']), C2H5 + CH3 -> C2H4 + CH4 (1.83e-12) (['corps', 'reaction', 'many body']), C2H6 + CH3 -> C2H5 + CH4 (3.96e-12) (['corps', 'reaction', 'many body']), CH3 + OH -> O3P + CH4 (4.62e-13) (['corps', 'reaction', 'many body', 'inverted']), CH3 + H2O -> OH + CH4 (5.34e-14) (['corps', 'reaction', 'many body', 'inverted']), HCO + CH3 -> CH4 + CO (1.99e-10) (['corps', 'reaction', 'many body']), CH3 + H2CO -> HCO + CH4 (1.04e-11) (['corps', 'reaction', 'many body']), CH3 + OOH -> O2 + CH4 (5.29e-13) (['corps', 'reaction', 'many body', 'inverted']), N2H2 + CH3 -> NNH + CH4 (1.48e-12) (['corps', 'reaction', 'many body']), N2H3 + CH3 -> N2H2 + CH4 (1.03e-12) (['corps', 'reaction', 'many body']), CH3 + NH3 -> CH4 + NH2 (3.93e-14) (['corps', 'reaction', 'many body', 'inverted']), HOCN + CH3 -> NCO + CH4 (2.96e-13) (['corps', 'reaction', 'many body']), H2CN + CH3 -> HCN + CH4 (2.26e-12) (['corps', 'reaction', 'many body']), HCNH + CH3 -> HCN + CH4 (2.29e-12) (['corps', 'reaction', 'many body']), HCN + CH3 -> CN + CH4 (1.02e-13) (['corps', 'reaction', 'many body', 'inverted']), HNCO + CH3 -> NCO + CH4 (1.20e-14) (['corps', 'reaction', 'many body', 'inverted']), CH3OH + CH3 -> CH2OH + CH4 (5.79e-13) (['corps', 'reaction', 'many body']), CH3OH + CH3 -> CH3O + CH4 (4.93e-14) (['corps', 'reaction', 'many body']), CH3O + CH3 -> H2CO + CH4 (1.99e-11) (['corps', 'reaction', 'many body'])]

Additionally each reaction includes a tag that describes some thing about the reaction. For example, we can find only reactions that use the Troe falloff using the find_tagged_reactions function.

from freckll.network import find_tagged_reactions

find_tagged_reactions(reactions, ["Troe"])

[C2H3 -> C2H2 + H (2.44e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 C2H2 + H -> C2H3 (7.59e-13) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 C2H5 -> C2H4 + H (5.36e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 C2H4 + H -> C2H5 (3.68e-12) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CO2H -> CO + OH (4.34e+08) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CO + OH -> CO2H (3.81e-14) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CO2H -> CO2 + H (6.56e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CO2 + H -> CO2H (1.62e-15) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CH3OH -> CH3 + OH (1.06e+04) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CH3 + OH -> CH3OH (4.54e-12) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CH3OH -> 1CH2 + H2O (2.58e+03) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 1CH2 + H2O -> CH3OH (1.72e-12) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CH3OH -> CH2OH + H (6.40e+01) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CH2OH + H -> CH3OH (6.83e-13) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CH3O -> H2CO + H (7.83e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 H2CO + H -> CH3O (3.55e-15) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CH4 -> CH3 + H (5.36e+00) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 CH3 + H -> CH4 (2.63e-13) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 O2 + H -> OOH (1.19e-14) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 OOH -> O2 + H (1.16e+04) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 CH3 + CH3 -> C2H6 (3.47e-12) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 C2H6 -> CH3 + CH3 (1.12e+05) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 H + CH3 -> CH4 (1.38e-11) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 CH4 -> H + CH3 (2.39e+02) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 CO + CH3 -> CH3CO (1.27e-15) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 CH3CO -> CO + CH3 (1.37e+09) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 O2 + H -> OOH (1.95e-13) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 OOH -> O2 + H (1.88e+05) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted']),
 H2CO + H -> CH2OH (8.17e-14) (['k0', 'kinf', 'falloff', 'Troe', 'reaction']),
 CH2OH -> H2CO + H (1.96e+07) (['k0', 'kinf', 'falloff', 'Troe', 'reaction', 'inverted'])]

Or "Troe" and "decomposition":

find_tagged_reactions(reactions, ["Troe", "decomposition"])

[CH2CHO -> CH3CO (1.36e+08) (['decomposition']),
 CH3CO -> CH2CHO (4.84e+07) (['decomposition', 'inverted']),
 CH2CHO -> H + CH2CO (2.68e+09) (['decomposition']),
 H + CH2CO -> CH2CHO (1.84e-11) (['decomposition', 'inverted']),
 NNH -> N2 + H (3.00e+08) (['decomposition']),
 N2 + H -> NNH (2.06e-16) (['decomposition', 'inverted']),
 HCNH -> HCN + H (1.82e+07) (['decomposition']),
 HCN + H -> HCNH (1.40e-14) (['decomposition', 'inverted']),
 H2CN -> HCN + H (2.45e+05) (['decomposition']),
 ...
 C2H3 -> C2H2 + H (2.44e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 C2H2 + H -> C2H3 (7.59e-13) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 C2H5 -> C2H4 + H (5.36e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 C2H4 + H -> C2H5 (3.68e-12) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CO2H -> CO + OH (4.34e+08) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CO + OH -> CO2H (3.81e-14) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 CO2H -> CO2 + H (6.56e+07) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition']),
 CO2 + H -> CO2H (1.62e-15) (['k0', 'kinf', 'falloff', 'Troe', 'decomposition', 'inverted']),
 ...]

For performance reactions can also be precompiled to a specific temperature/pressure profile. Compare this:

%timeit network.compute_reactions(vmr, temperature, pressure)

18.9 ms ± 415 μs per loop (mean ± std. dev. of 7 runs, 100 loops each)

With this:

network.compile_reactions(temperature, pressure)

%timeit network.compute_reactions(vmr)

8.97 ms ± 238 μs per loop (mean ± std. dev. of 7 runs, 100 loops each)

A 50% decrease in runtime!

Solving the atmosphere

We now want to solve the atmosphere. We require a solver to accomplish this. FRECKLL supports two solvers:

  • VODE
  • Rosenbrock

For the purpose of this tutorial we will use the Rosenbrock solver. We can import our solver from freckll.solver and create a solver object. The solver object requires the following arguments:

  • network - The network object
  • photochemistry - A photochemistry object. This is not required if you are not using photochemistry. (We will cover this later).
from freckll.solver import Rosenbrock

rosen = Rosenbrock(network=network)

Before we can solve the atmosphere we need to setup the conditions of the atmosphere. This includes the temperature, vmr, planetary parameters and so on. This can be done using the set_system_parameters method

rosen.set_system_parameters(
    temperature=temperature,
    pressure=pressure,
    kzz=kzz,
    planet_radius=1.37 * u.Rjup,
    planet_mass=0.87 << u.Mjup,
)

The solver will automatically compile the networks for us so there is no need to precompile them beforehand. Finally we now solve our atmosphere. We will use a randomized initial mixing ratio.

This should take no more than 20-30 seconds to run. The solver will return a SolverResult dictionary that contains the results of the simulation. This includes the following attributes:

  • success - A boolean that indicates if the simulation was successful
  • times - The time points of the simulation
  • vmr - The volume mixing ratio of the species at each time point
  • initial_vmr - The initial volume mixing ratio of the species
  • temperature - The temperature of the atmosphere
  • pressure - The pressure of the atmosphere
  • density - The density of the atmosphere
  • kzz - The eddy diffusion coefficient
  • planet - Planet parameters
  • species - The species in the network
vmr = np.random.rand(len(network.species), len(pressure))
vmr = vmr / np.sum(vmr, axis=0, keepdims=True)


result = rosen.solve(
    vmr=vmr,
    t_span=[0, 1e16],
    enable_diffusion=False,
    maxiter=1000,
)

print('Success:',result["success"])

Success: True

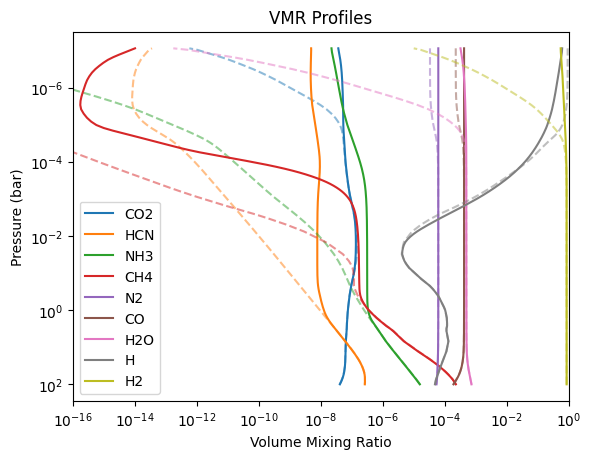

We have lots of plotting options available for us. Plotting the initial and steady state:

from freckll.plot import plot_vmr

fig, ax = plt.subplots()
plot_vmr(result["vmr"][-1], result["pressure"], result["species"], initial_vmr=result["initial_vmr"],
         xlims=(1e-7, 1e0),
         ax=ax)
plt.show()

png

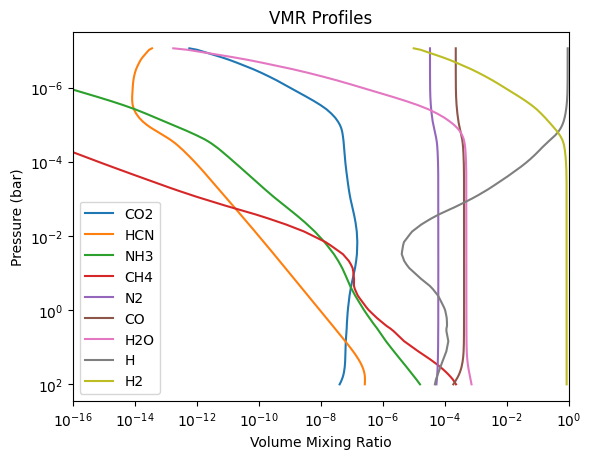

The dashed lines are our initial conditions and the solid are the final solved state. We can also animate the results as well:

from IPython.display import HTML, Video

%%capture
from freckll.plot import animate_vmr

fig, ax = plt.subplots()

anim = animate_vmr(
    vmrs=result["vmr"],
    times=result["times"],
    species=result["species"],
    pressure=result["pressure"],
    initial_vmr=result["initial_vmr"],
    xlims=(1e-7, 1e0),
    blit=True, repeat=False,
    interval=50,
)

anim.save("randomvmr.mp4", fps=30, dpi=200, writer="ffmpeg")

Video("randomvmr.mp4")

Running from Equilibrium

Of course we may want to start from an atmosphere of given metallicity and molecular ratios. You can supply your own initial VMR as along as the first dimension maps to each species in network.species. The solver will then run from this initial VMR to the final state.

FRECKLL includes the equilibrium code ACE which is installed either from:

pip install freckll[ace]

or

pip install freckll[recommended]

or you can install it manually using:

pip install acepython

Under freckll.ace you can use equil_chemistry_ace and abundance ratios to solve for the equilibrium state of the atmosphere.

from freckll.ace import equil_chemistry_ace

equil_vmr = equil_chemistry_ace(
    temperature=temperature,
    pressure=pressure,
    composition=network.species,
    elements=["H", "He", "C", "N","O"],
    abundances=[12, 10.93, 8.39, 7.86, 8.73],

)

fig, ax = plt.subplots()
plot_vmr(
    equil_vmr,
    pressure,
    network.species,
    ax=ax,
)
plt.show()

png

Lets solve using this mixing ratio instead!

result_equil = rosen.solve(
    vmr=equil_vmr,
    t_span=[0, 1e16],
    enable_diffusion=False,
    maxiter=1000,
)
print('Success:',result_equil["success"])

Success: True

Now lets plot the initial and final mixing ratios:

fig, ax = plt.subplots()

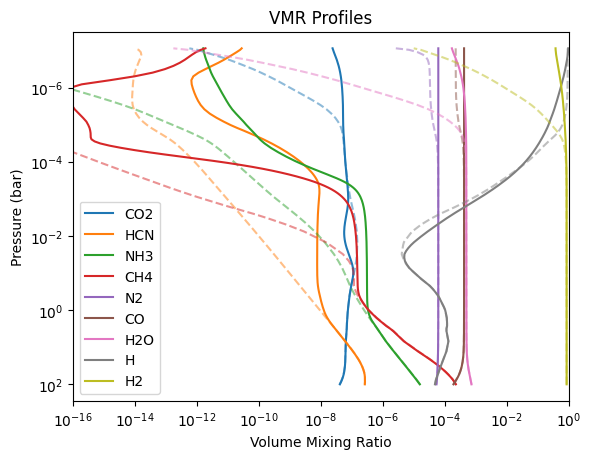

plot_vmr(result_equil["vmr"][-1], result_equil["pressure"], result_equil["species"], initial_vmr=result_equil["initial_vmr"],
         xlims=(1e-16, 1e0),
         ax=ax)
plt.show()

png

Nice! Lets also animate the result!

%%capture

anim_equil = animate_vmr(
    vmrs=result_equil["vmr"],
    times=result_equil["times"],
    species=result_equil["species"],
    pressure=result_equil["pressure"],
    initial_vmr=result_equil["initial_vmr"],
    xlims=(1e-16, 1e0),
    blit=True, repeat=False,
    interval=50,
)

anim_equil.save("equil_vmr.mp4", fps=30, dpi=200, writer="ffmpeg")

Video("equil_vmr.mp4")

Storing and Reading Results

We can store the output of a solution to HDF5 format using the freckll.io.output modules. We can simply takes the result from the solver and run this function:

from freckll.io.output import write_solution_h5py

write_solution_h5py(
    solution=result_equil,
    filename="solution_equil.h5",
    overwrite=True,
)

If we want to restore it, it is as easy as running the read function:

from freckll.io.output import read_h5py_solution

solution_h5 = read_h5py_solution("solution_equil.h5")

And we can replot it to prove it is the same:

fig, ax = plt.subplots()
plot_vmr(solution_h5["vmr"][-1], solution_h5["pressure"], solution_h5["species"], initial_vmr=solution_h5["initial_vmr"],
         xlims=(1e-16, 1e0),
         ax=ax)
plt.show()

png

Running with Photochemistry

For the photochemistry case we will need to use the full network instead. We can load it in using the default_network_loader function:

full_network = default_network_loader("venot-methanol-2020")

We will also need to load in the photochemistry and actinic flux for the star. This is easily accomplished using the loader modules. We will load the Venot 2020 photochemistry and the actinic flux for HD 209458 star

from freckll.io.loader import default_photonetwork_loader, default_stellar_spectra_loader

photo_network = default_photonetwork_loader(full_network.species)
stellar_spectra = default_stellar_spectra_loader("hd209458")

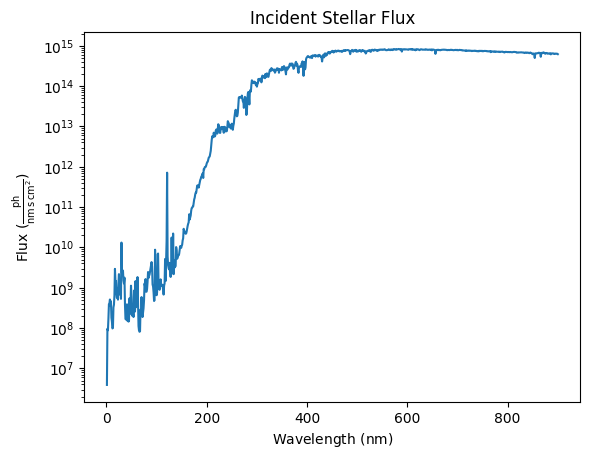

Lets plot the stellar flux and see what it looks like!

from freckll.plot import plot_stellar_flux

fig, ax = plt.subplots()
plot_stellar_flux(stellar_spectra.flux, stellar_spectra.wavelength, ax=ax)
plt.show()

png

We can now build a new solver with the photochemistry included. The photochemistry object is passed to the solver as an argument.

rosenbrock_photo = Rosenbrock(
    network=full_network,
    photochemistry=photo_network,
    )

Now we can setup the photoparameters and the system parameters like so:

photo_network.set_spectra(stellar_spectra, distance=0.047 << u.AU, albedo=0.0)
rosenbrock_photo.set_system_parameters(
    temperature=temperature,
    pressure=pressure,
    kzz=kzz,
    planet_radius=1.37 * u.Rjup,
    planet_mass=0.87 << u.Mjup,
)

Lets generate our new equilibrium state:

vmr_photo_equil = equil_chemistry_ace(
    temperature=temperature,
    pressure=pressure,
    composition=full_network.species,
    elements=["H", "He", "C", "N","O"],
    abundances=[12, 10.93, 8.39, 7.86, 8.73],
)

Now let us solve! This will take a little longer ~ 40 seconds to a minute:

result_photo_equil = rosenbrock_photo.solve(
    vmr=vmr_photo_equil,
    t_span=[0, 1e16],
    enable_diffusion=False,
    maxiter=1000,
)
print('Success:',result_photo_equil["success"])

/Users/ahmed/Documents/repos/FRECKLL/.venv/lib/python3.12/site-packages/astropy/units/quantity.py:658: RuntimeWarning: overflow encountered in exp
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/ahmed/Documents/repos/FRECKLL/.venv/lib/python3.12/site-packages/astropy/units/quantity.py:658: RuntimeWarning: invalid value encountered in multiply
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/ahmed/Documents/repos/FRECKLL/.venv/lib/python3.12/site-packages/astropy/units/quantity.py:658: RuntimeWarning: overflow encountered in multiply
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)


Success: True

Lets plot the results!

fig, ax = plt.subplots()
plot_vmr(result_photo_equil["vmr"][-1], result_photo_equil["pressure"], result_photo_equil["species"], initial_vmr=result_photo_equil["initial_vmr"],
         xlims=(1e-16, 1e0),
         ax=ax)
plt.show()

png

And lets animate it!

%%capture

anim_photo_equil = animate_vmr(
    vmrs=result_photo_equil["vmr"],
    times=result_photo_equil["times"],
    species=result_photo_equil["species"],
    pressure=result_photo_equil["pressure"],
    initial_vmr=result_photo_equil["initial_vmr"],
    xlims=(1e-16, 1e0),
    blit=True, repeat=False,
    interval=50,
)

anim_photo_equil.save("photo_equil_vmr.mp4", fps=30, dpi=200, writer="ffmpeg")

Video("photo_equil_vmr.mp4")

Thats all there is to it! Try it and see what you can solve!
